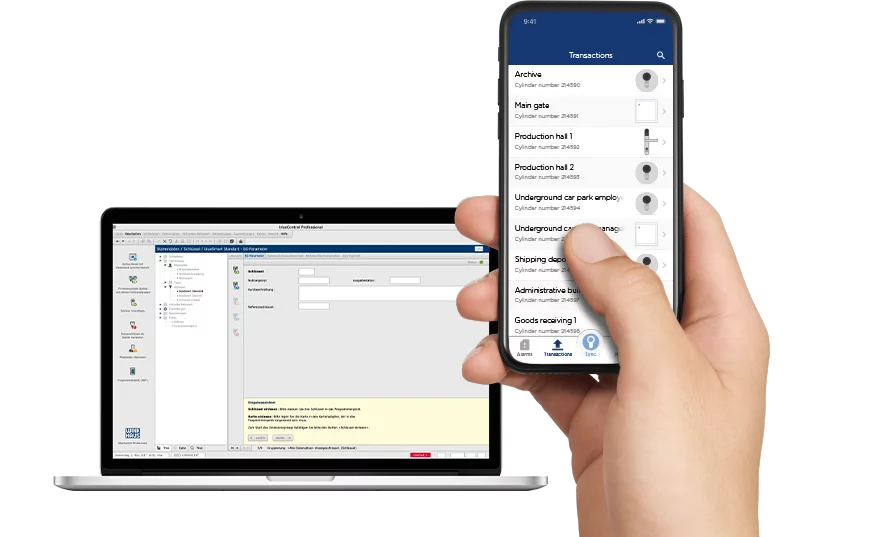

Everything at a glance and under your control
Time profiles for greater flexibility
Our blueControl software starter packages already have a wide range of setting options for tailor-made locking system operation. For example, shift models are also easily implemented, even with time profiles that can be divided on a daily basis.
Grant and change authorisations with ease
The authorisation matrix provides an overview of current locking authorisations in your blueSmart locking system. These can be flexibly changed at any time and are transmitted to locking components in offline and virtually networked locking systems using the programming device or the upload reader. Authorisation changes are immediately effective for online components.
Always up-to-date
Extensive evaluation options provide transparency about all processes in your blueSmart locking system at any time. We place great importance on database consistency, audit security and data protection at all times.
Control + data protection
If transaction data in the locking system is to be recorded, it can be automatically deleted at any time according to age. This means that requirements from your company or service agreements for the use of an electronic locking system can be implemented in a highly practical and EU GDPR-compliant manner. We also provide you with sample templates for such works or service agreements as a matter of course.
Wireless system

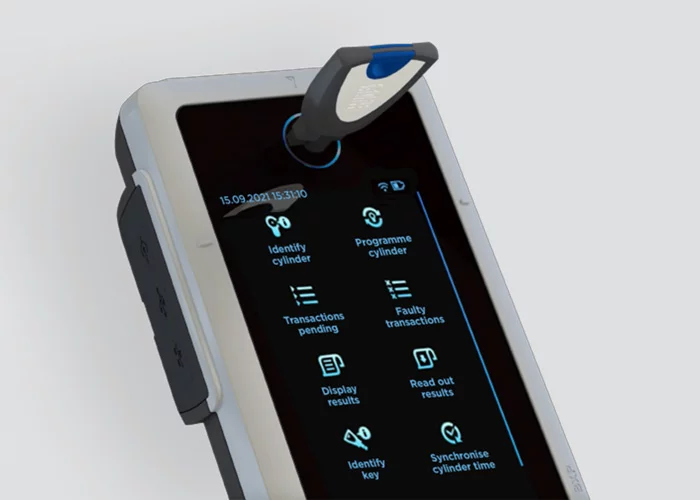

The BXP BS programming device can be integrated not only via USB or Ethernet, but also via WLAN as an alternative. This makes transporting commands and transactions to locking components even easier and often reduces distances.
blueSmart software modules meet any requirement.
Entry-level locking convenience
blueControl Start:
The software allows you to manage small offline locking systems. With blueControl Start (BCS), you have a comprehensive package of basic functions that guarantees simple management of your locking system.
Available as end user and dealer variant
Installation on PC
The software is delivered complete with programming device BXP BS
In dealer version, management of up to five systems
Upgrade to blueControl Professional possible
Management of max. 300 keys and max. 100 door components per system
Online convenience at an offline price
blueControl Start Virtual
With blueControl Start Virtual (BCS-V), small to medium-sized companies virtually network their blueSmart locking system using upload readers. Unlike blueControl Start (BCS), this package can be used to manage upload readers and ITM door managers.
Server/client installation
The software is delivered complete with programming device BXP BS 61*
Upgrade to blueControl Professional possible
Less walking thanks to virtual networking
Timely, automatically transported battery warning messages
Can be expanded to max. 700 keys, max. 350 door components, max. six upload readers and max. 24 ITM door managers
Access control without limits
blueControl Professional
blueControl Professional (BC Pro) is used to conveniently manage and change locking systems with different requirements. In addition to the management of offline and virtually networked components and ITM door managers, it enables integrated management of a Winkhaus online access control system. It is used in medium and large companies and public buildings.
Server/client installation
Optional remote authorisation and programming via app
Intelligent battery management
Single sign-on
Software modules available for a wide range of applications
Interfaces for connection to other systems possible
Covers max. 1,000 keys per system and can be expanded
to max. 196,000 keys or door components
 |
 |
 |
|
|---|---|---|---|
| Start | Start-Virtual | Professional | |
| Input assistant |
 |
|
|
| Management of cylinder time profiles | |
|
|
| Different languages available | |
|
|
| Logging of events in the cylinder (2,000 items) | |
|
|
| Locking plan administration via the virtual network | |
|
|
| Transport of the locking events via the virtual network | |
|
|
| Feedback of the battery service life via virtual network | |
|
|
| Management of over 100 blueSmart components | |
|
|
| Management of over 300 users | |
|
|
| Server/client version (BCS-V: max. one client) |
|
|
|
| Management of up to six upload readers and up to 24 ITM door managers |
|
|
|
| Management of up to six upload readers and up to 24 ITM door managers |
|
||
| Transfer office function changes via key command |
|
||
| More than one ID per employee |
|
||
| Use of the viral disable command | |
||
| Software Module “Remote control of programming device via TCP/IP” |
|
||
| Visitor management software module | |
||
| Customer control software module |
|
||
| 4- or 6-eye login software module |
|
||
| Building control system interface software module |
|
||
| Remote programming/remote authorisation software module |
|
||
| Hotel software module |
|
||
| “TCP/IP interface for data and message transfer” software module |
|
||
| Data import/export software module |
|||
| Universal transfer interface software module |
|||
| Wide range of other software modules |
Get in touch with us.
Do you have any questions or would you like to receive an offer for a specific project? We will be happy to help you.
Alternatively, you can also send us an e-mail: zutrittsorganisation@winkhaus.de
*) BXP BS 61: Allows programming of electronic knob cylinders type 61/15, 62 and 65.
